5.0 HP motor is set up for 208-230 volt operation. Draws 24 amps at 230 volts.
Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span.
Heavy-duty, splash lubricated pump with cast iron cylinders and aluminum body for optimum durability and performance.
Two-stage pump reaches up to 175 PSI.
Pressure switch is set up to cut-in at 145 PSI then cut-off at 175 PSI.
Vertical 60 gallon tank takes minimal floor space and has pre-drilled steel bracket legs to bolt into the floor.
WEIGHT: 445LBS
DIMENSIONS (LxWxH): 28"x24"x75"
Belt drive system keeps the pump RPM low and running cooler to extend its performance and life span.
Heavy-duty, splash lubricated pump with cast iron cylinders and aluminum body for optimum durability and performance.
Two-stage pump reaches up to 175 PSI.
Pressure switch is set up to cut-in at 145 PSI then cut-off at 175 PSI.
Vertical 60 gallon tank takes minimal floor space and has pre-drilled steel bracket legs to bolt into the floor.

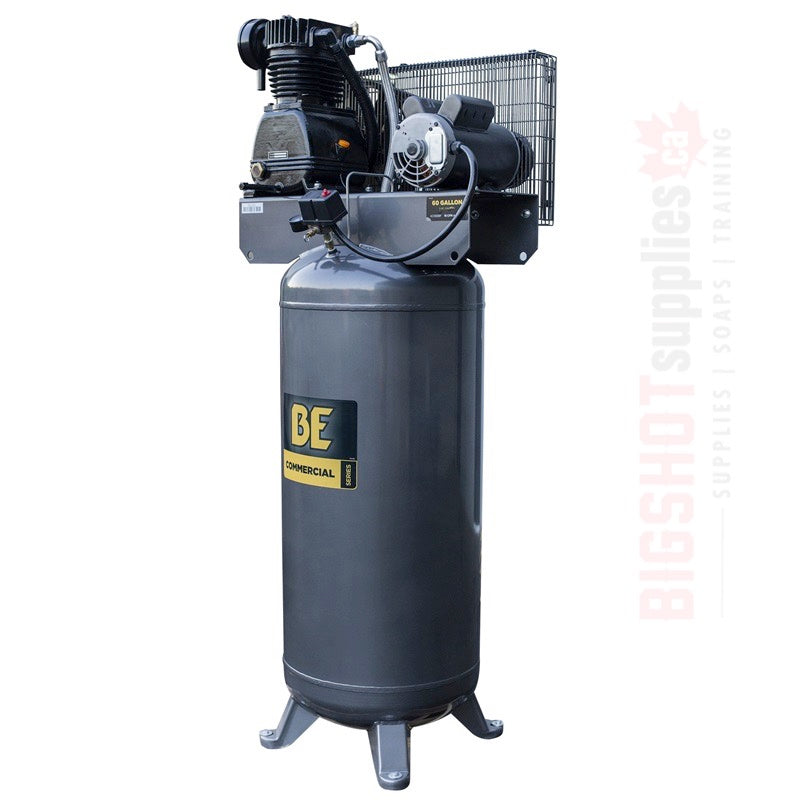

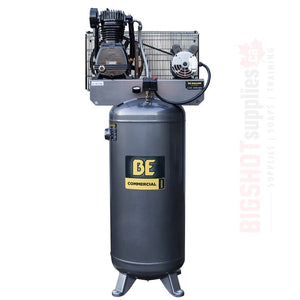

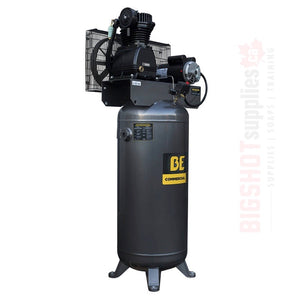

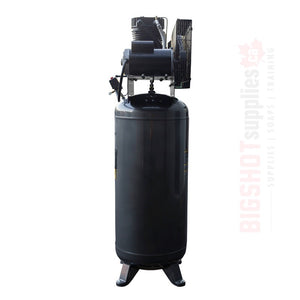

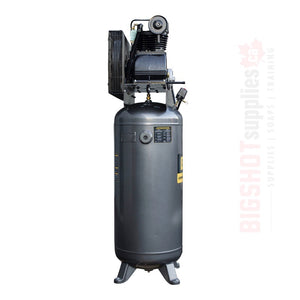

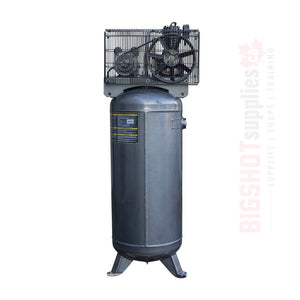

The actual product may vary from the images shown on the website..
SHIPPING INFORMATIONWEIGHT: 445LBS
DIMENSIONS (LxWxH): 28"x24"x75"
SKU: AC5161BP
