High Temperature System Can accept an externally supplied water source heated up to a maximum of 85°C/185°F
2.0 HP Baldor motor delivers energy efficiency and reliability suited for commercial applications.
Direct drive system connects the engine to the pump for a compact and efficient power transfer.
Commercial grade General triplex pump featuring die-cast body, forged brass manifold, solid ceramic plungers. Special plating and seals to handle rigorous temperatures.
External unloader provides enhanced pump cooling.
Accessories include high-pressure hose, spray gun wand assembly, and spray nozzles so that it can be used right out of the box.

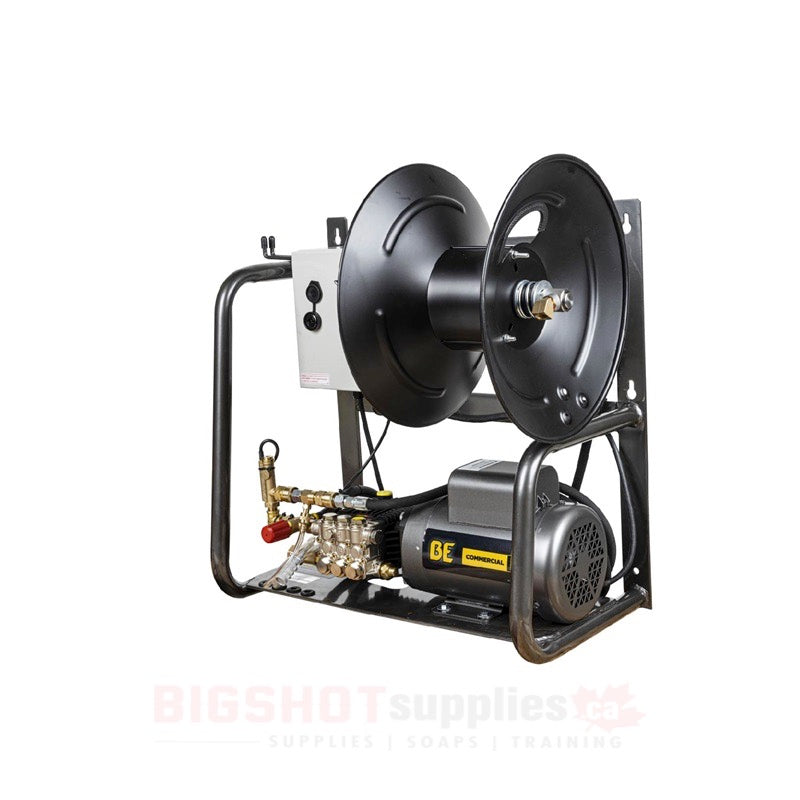

Powder coated steel frame mounts securely to a wall with storage for accessories including a hose reel for the high pressure hose.
Does not include power plug. Needs to be wired in by a certified electrician.
Product Specifications
Performance
-
Pressure: 1,500 PSI* Flow Rate: 2.0 GPM
-
Max Inlet Water Temp: 85°C / 185°F
Motor
-
Brand: Baldor
-
Power: 2.0 HP
-
Type: Single-phase electric
-
Duty Cycle: Continuous
-
Plug: Not included; must be hardwired by a licensed electrician
Pump
-
Brand: General Pump
-
Type: Triplex plunger
-
Body: Die-cast
-
Manifold: Forged brass
-
Plungers: Solid ceramic
-
Features: Special seals and plating for high-temp water
-
Unloader: External
Frame
-
Material: Powder-coated steel
-
Mounting: Wall-mounted
-
Features: Hose reel and accessory storage
Accessories
-
Hose: 50 ft. high-pressure, twin-wire braided
-
Spray Gun: Pro-grade with 36” wand
-
Nozzles: 0°, 15°, 25°, 40°, and Soap — quick-connect
Shipping Information
-
Weight: 220 lbs
-
Dimensions (L x W x H): 40” x 22” x 32”
This unit is not ready to use right out of the box and requires a Plug, Cord & Switch to be installed.
It comes equipped with a built-in bypass/re-circulating hose (which can be bypassed if desired) and DOES include a flow switch & automatic on/off box.
⚡ Important: Any alterations, repairs, or installations on electric pressure washing units must be performed by a certified electrician.
Download Specsheet Here
Download Manual Here
SKU: X-1520FW1GENH
