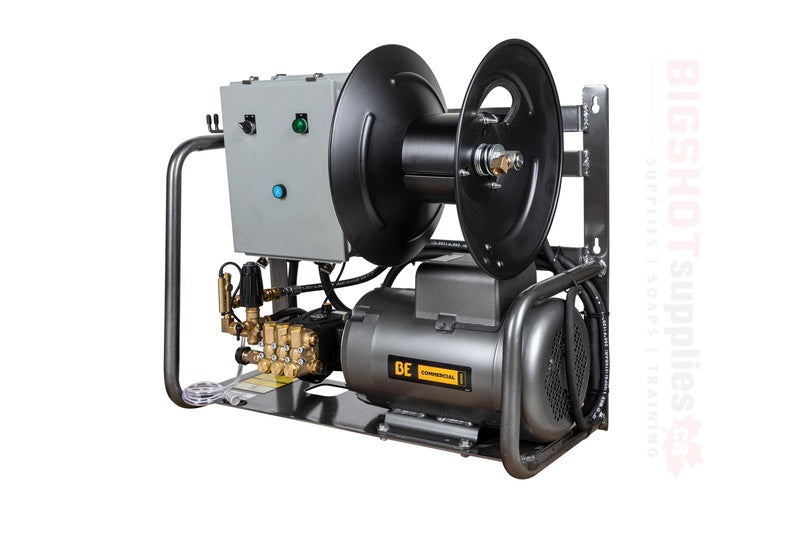

7.5 HP Baldor motor delivers energy efficiency and reliability suited for commercial applications.
Direct drive system connects the engine to the pump for a compact and efficient power transfer.
Commercial grade AR triplex pump featuring die-cast body, forged brass manifold, ceramic coated plungers and thermal release valve.
External unloader provides enhanced cooling and be set to dump-to-ground bypass water to maximize cooling system.
Accessories include high-pressure hose, spray gun wand assembly, and spray nozzles so that it can be used right out of the box.

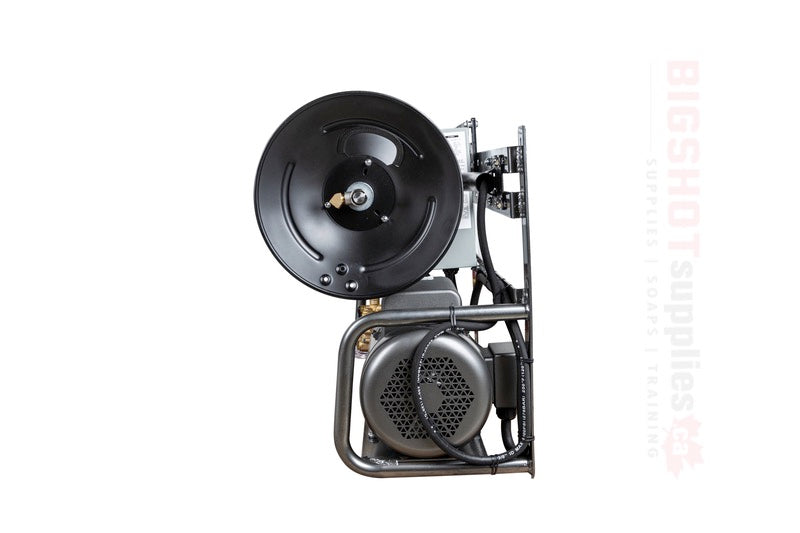

Powder coated steel frame mounts securely to a wall with storage for accessories including a hose reel for the high pressure hose.
Product Details
Performance
-
Pressure: 3,000 PSI
-
Flow Rate: 4.0 GPM
-
Temperature: Cold water system
Motor
-
Brand: Baldor
-
Power: 7.5 HP
-
Type: Single-phase electric
-
Efficiency: Energy-efficient, continuous-duty rated
-
Installation: Hardwired (no power plug included)
Pump
-
Brand: AR (Annovi Reverberi)
-
Type: Triplex plunger pump
-
Body: Die-cast aluminum
-
Manifold: Forged brass
-
Plungers: Solid ceramic-coated
-
Safety: Thermal relief valve
-
Unloader: External with dump-to-ground capability
Frame
-
Material: Powder-coated steel
-
Design: Wall-mounted
-
Features: Built-in hose reel and accessory storage
Accessories Included
-
Hose: 50 ft., high-pressure, twin-wire braided
-
Spray Gun & Wand: 36” insulated, ergonomic, with quick-connect fittings
-
Nozzles: 5 quick-connect tips (0°, 15°, 25°, 40°, Soap)
This unit is not ready to use right out of the box and requires a Plug, Cord & Switch to be installed.
It comes equipped with a built-in bypass/re-circulating hose (which can be bypassed if desired) and DOES include a flow switch & automatic on/off box.
⚡ Important: Any alterations, repairs, or installations on electric pressure washing units must be performed by a certified electrician.
Download Specsheet Here
Download Manual Here
SKU: X-2775FW1A
