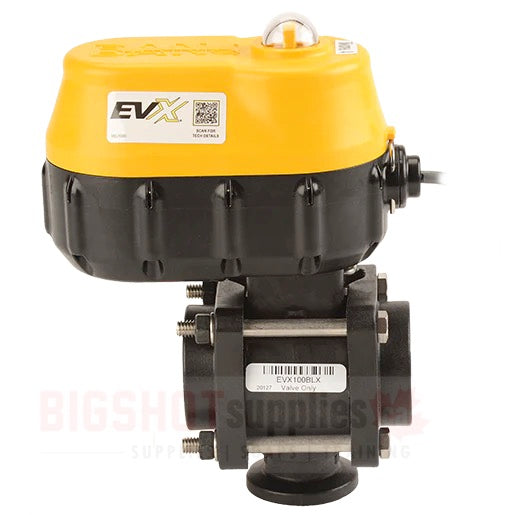

12V Electric 3 Way Ball Valve

• Description

  • 12-volt DC operated

  • 24-volt available - special order contact sales

  • Open/closed indicator

  • 1 in. & 1-1/4 in. On/Off has 3/4 second response

  • 1-1/2 in. & 2 in. On/Off has 1-1/2 second response

  • Open / Close verification available

  • IP68 waterproof

  • -0 to 150F (-18 to 65C) operating

  • -67 to 221F (-55 to 105C) storage On/Off Actuator rated to 500,000 cycles

  • Valve rated to 50,000 cycles leak-free

  • These bolted valves have the exact same dimensions as our legacy EV valves.

  • Additional protocols available including CAN/ISO BUS, Proportional Control and PWM


  MATERIALS


  • 316 stainless steel ball and stem

  • Stainless steel hardware

  • Fiberglass reinforced polypropylene

  • PTFE seats

  • FKM stem seals


  On/Off


  • Red = +12V DC

  • Black = Ground

  • White = +12VDC (Open) / 0VDC (Close)


  4 Wire Regulating


  • Red = +12V DC (Open)

  • White = Ground (Open)

  • Black = +12V DC (Close)

  • Green = Ground (Close)



  Lead times on this product vary. Contact us for details.

  Restocking fee applies to any cancelled orders after initial purchase.

SKU: BAN-EVX075BL
