HIGH TEMPERATURE SYSTEM: Can accept an externally supplied water source heated up to a maximum of 73°C/165°F
7.5 HP Baldor motor delivers energy efficiency and reliability suited for commercial applications.
Direct drive system connects the engine to the pump for a compact and efficient power transfer.
Commercial grade General triplex pump featuring die-cast body, forged brass manifold, solid ceramic plungers. Special plating and seals to handle rigorous temperatures.
External unloader provides enhanced pump cooling.
Accessories include high-pressure hose, spray gun wand assembly, and spray nozzles so that it can be used right out of the box.

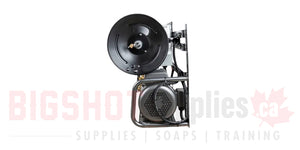

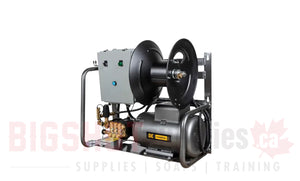

Powder coated steel frame mounts securely to a wall with storage for accessories including a hose reel for the high pressure hose.
Does not include power plug. Needs to be wired in by an electrician.
Product Specifications
Before we get into the specs let’s talk about PSI (pounds per square inch) and GPM (gallons per minute) in electric wall mount pressure washers. These two factors directly impact cleaning effectiveness—higher PSI means more force to remove tough grime and higher GPM means faster rinsing and coverage.
Performance
-
Pressure: 3,000 PSI
-
Flow Rate: 4.0 GPM
-
Max Inlet Water Temperature: 73°C / 165°F
Motor
-
Brand: Baldor
-
Power: 7.5 HP
-
Type: Single-phase electric
-
Operation: Continuous-duty
-
Wiring: Hardwired installation (no plug included)
Pump
-
Brand: General Pump
-
Type: Triplex plunger
-
Manifold: Forged brass
-
Body: Die-cast aluminum
-
Plungers: Solid ceramic
-
Features: Special plating and high-temp seals
-
Relief Valve: Included
-
Unloader: External with dump-to-ground capability
Frame & Mounting
-
Material: Powder-coated steel
-
Design: Wall-mounted
-
Storage: Built-in hose reel and accessory hangers
Accessories
-
Hose: 50 ft. high-pressure, twin-wire braided
-
Gun & Wand: 36” insulated, commercial-grade
-
Nozzles: 5 quick-connect tips — 0°, 15°, 25°, 40°, Soap
This unit is not ready to use right out of the box and requires a Plug, Cord & Switch to be installed.
It comes equipped with a built-in bypass/re-circulating hose (which can be bypassed if desired) and DOES include a flow switch & automatic on/off box.
⚡ Important: Any alterations, repairs, or installations on electric pressure washing units must be performed by a certified electrician.
Download Manual Here
Download Spec Sheet Here
SKU: X-2775FW1GENHT
