3,500 PSI - 8.5 GPM Hot Water Pressure Washer Honda GX690 Engine and CP Triplex Pump
3,500 PSI - 8.5 GPM Hot Water Pressure Washer Honda GX690 Engine and CP Triplex Pump
  • Load image into Gallery viewer, 3,500 PSI - 8.5 GPM Hot Water Pressure Washer Honda GX690 Engine and CP Triplex Pump
  • Load image into Gallery viewer, 3,500 PSI - 8.5 GPM Hot Water Pressure Washer Honda GX690 Engine and CP Triplex Pump

3,500 PSI - 8.5 GPM Hot Water Pressure Washer Honda GX690 Engine and CP Triplex Pump

$12,784.99
$12,784.99
Sold out
Shipping calculated at checkout.

For commercial cleaning professionals who face the toughest grime, biggest messes, and tightest deadlines, the BE Power Equipment HW3524HA12V delivers unstoppable cleaning performance. Pushing out a massive 3,500 PSI at 8.5 GPM, this hot water pressure washer pairs high flow volume with the heat you need to blast away grease, oil, and buildup—fast.

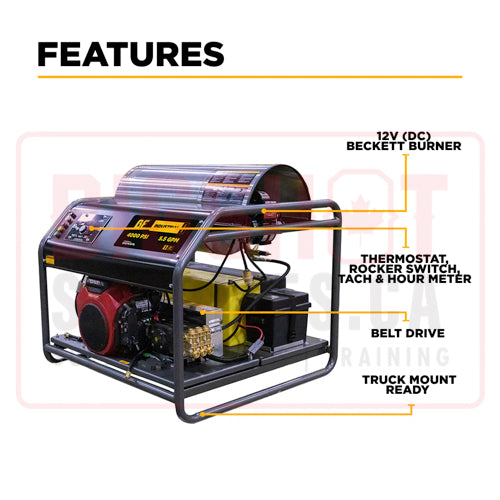

At the heart of the machine is a Honda GX690 V-Twin engine with electric start, matched with a belt-driven CP triplex pump known for industrial reliability. A 12V Beckett diesel burner powers a heating coil capable of reaching up to 200°F, and the entire system is framed in a rugged powder-coated steel roll cage—ready for permanent truck or trailer mounting.

This is the pressure washer serious pros rely on when clean matters and downtime isn’t an option.

Product Specs

  • Pressure: 3,500 PSI

  • Flow Rate: 8.5 GPM

  • Engine: Honda GX690 V-Twin with electric start

  • Battery: 55AH Marine-grade AGM included

  • Pump: CP industrial triplex – reinforced body, ceramic plungers, forged brass manifold

  • Drive Type: Belt-driven

  • Unloader: External for enhanced cooling and pump life

  • Burner: Diesel-fired 12V Beckett burner

  • Max Temperature: 200°F (93°C)

  • Thermostat: Adjustable with rocker switch

  • Accessories: 50-ft steel-braided hose, insulated 47" gun/wand, 5 QC nozzles

  • Frame: Powder-coated 1.5" OD steel roll cage for mounting

  • Oil Drain Hoses: Installed on engine and pump for easy service

  • Mounting: Truck/trailer compatible

  • Weight: 975 lbs

  • Dimensions (LxWxH): 48" x 46" x 51"

Hooking up a battery to the GX690: (This unit comes fully set up already)

For the battery wiring, use 6 gauge wire on the GX690 engines with 6 gauge ¼” and ½” terminal rings.

Spec sheet

Breakdown

GX690 Manual

* Always make sure to check engine oil, pump oil and gearbox oil prior to starting up a new machine.


48" x 46" x 51" (LxWxH) Dimensions

Weight: 975 Lbs

Lead times on this product vary. Contact us for details.
Restocking fee applies to any cancelled orders after initial purchase.


*Shipping cost calculated at checkout*
*FREE Local Pickup in Langley, BC*

SKU: HW3524HA12V
