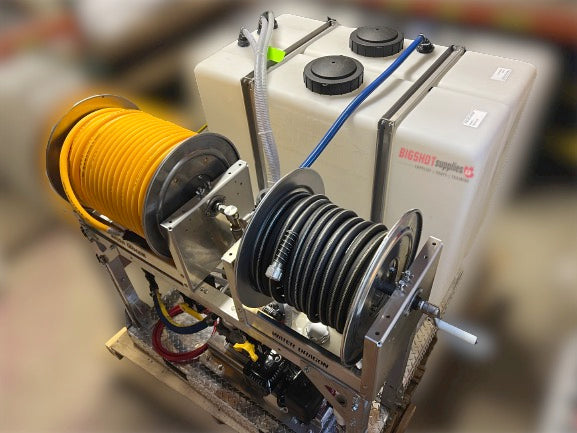

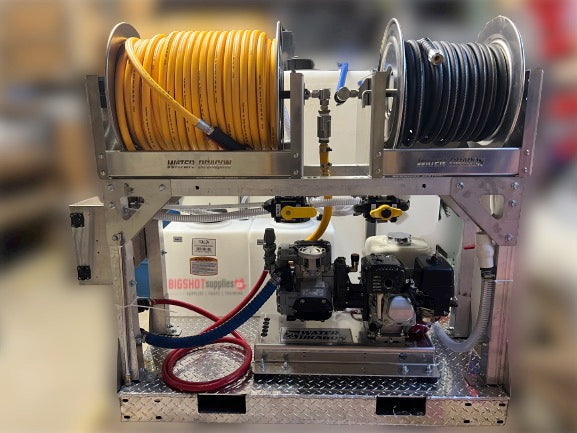

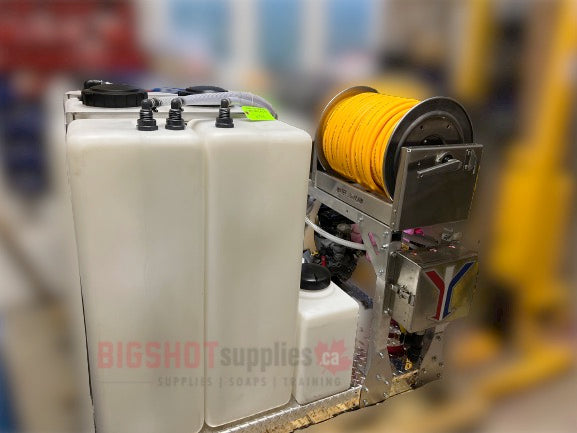

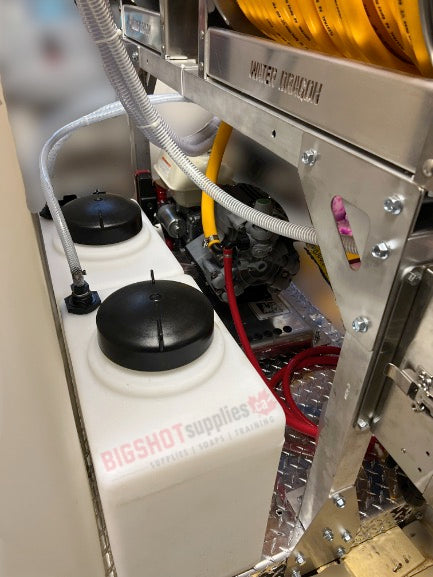

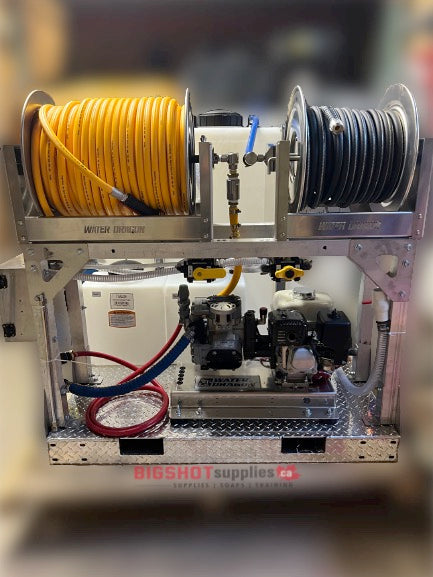

Honda GX200 and Comet P40 Pump (11GPM) Option:
This unit is designed to give you a max of 11GPM at 300PSI with the ability to adjust the flow and pressure using the built-in regulator. It is also ready to run dual guns with the two ball valves at the pump if desired. Just add a second line and you have 2 guns at 5.5GPM per gun.
- High Flow Proportioner
- Heavy Duty Aluminum Skid with Vibration Isolating Rubber Feet
- Honda GX200 engine with electric start
- Comet P40 Pump
- Slotted PVC filters
- 18" Full Frame Water Dragon Reel with Stainless Manifold on Custom Hose Reel Rack
- 300' 1/2" Orange AG Hose
- 12" Full Frame Water Dragon Reel with Stainless Manifold on Custom Hose Reel Rack
- 100' 3/4" Garden Hose
- 2 - 100 gallon slim line tanks
- 2 - 7 gallon soap tanks
- 4 nozzle holder with #60 0, 15, 25, 40-degree nozzles
- 20" stainless steel lance with quick connects
- Plastic body chemical applicator gun with Viton seals
- Suction and Discharge line included
Mounted on 60" x 56" aluminum diamond plate skid.
"Measurements"
- 56" Tall
- 60" Wide (Looking straight at it)
- 64" Deep
- When you add the handles on the hose reels the overall left to right measurement is: 66"
- Empty - 800lbs
- Full - 3050lbs
Honda GX1600 and Udor Zeta 40P/GR Pump (10GPM) Option:
This unit is designed to give you a max of 10GPM at 300PSI with the ability to adjust the flow and pressure using the built-in regulator. It is also ready to run dual guns with the two ball valves at the pump if desired. Just add a second line and you have 2 guns at 5GPM per gun.
- High Flow Proportioner
- Heavy Duty Aluminum Skid with Vibration Isolating Rubber Feet
- Honda GX160 engine with electric start
- Udor Zeta 40P/GR Pump with Pressure and Flow Regulator (this poly pump will help stand up to the harmful effects of bleach)
- Slotted PVC filters
- 18" Full Frame Water Dragon Reel with Stainless Manifold on Custom Hose Reel Rack
- 300' 1/2" Orange AG Hose
- 12" Full Frame Water Dragon Reel with Stainless Manifold on Custom Hose Reel Rack
- 100' 3/4" Garden Hose
- 2 - 100 gallon slim line tanks
- 2 - 7 gallon soap tanks
- 4 nozzle holder with #60 0, 15, 25, 40-degree nozzles
- 20" stainless steel lance with quick connects
- Plastic body chemical applicator gun with Viton seals
- Suction and Discharge line included
Mounted on 60"x56" aluminum diamond plate skid, plumbed with two 55 gallon chem tanks.
"Measurements"
-
56" Tall
-
60" Wide (Looking straight at it)
-
64" Deep
-
When you add the handles on the hose reels the overall left to right measurement is: 66"
- Empty - 800lbs
- Full - 3050lbs
SKU: WD-5407CMS-PP
